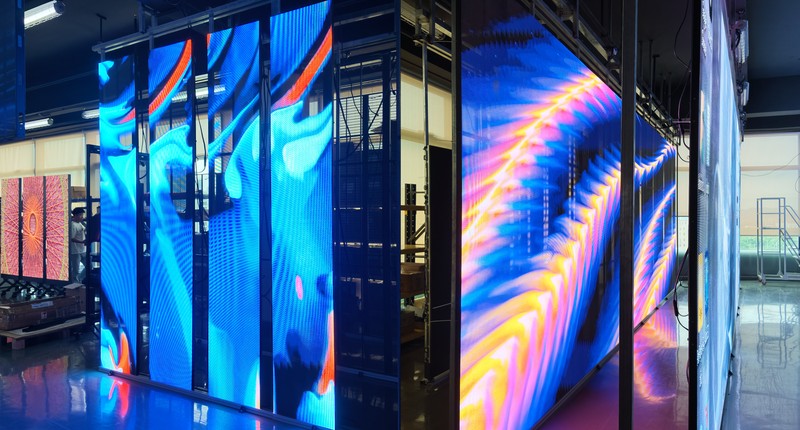

We recently completed a 30m² transparent LED display installation at a nightclub in Madrid, Spain. Built using our O-Clear series with a P3.9×3.9 pixel pitch, the screen elevates the venue’s dynamic atmosphere without compromising its architectural integrity.
技術仕様
1. 製品モデル: O-Clear Series Transparent LED Display
2. ピクセルピッチ: P3.9×3.9
3. ディスプレイの寸法: 2.5m x 3m x 4 pcs
4. 総表示領域： 30 m²
5. モジュールサイズ: 500mm x 62.5mm
6. モジュール数量： 240 pcs
7. 明るさ： 4500ニット
8. リフレッシュレート: 3840 Hz
9. 配送: 木箱梱包

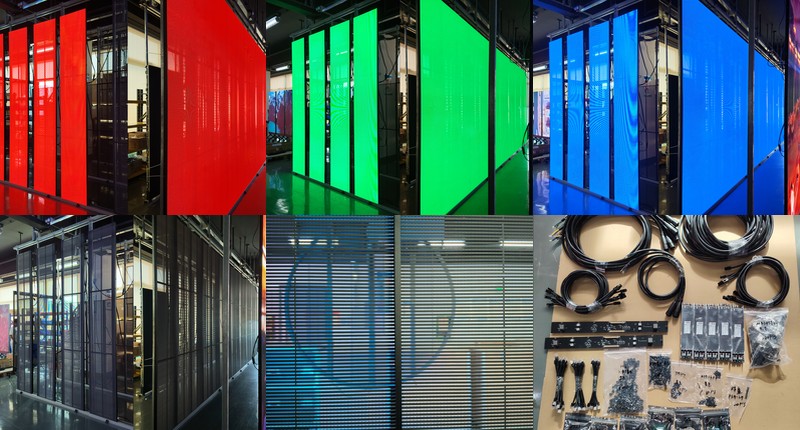

スペアパーツ在庫
1. ディスプレイモジュール： 18個
2. バックアップ電源： 5ユニット
3. カードの受け取り: 2個
4. HUBカード: 2個
5. 予備IC： 180 pcs
6. 信号ケーブル： 36個
7. 電源ケーブル： 13 pcs
8. 取り付け金具： A comprehensive selection of weather-resistant screws and fasteners, specifically designed for secure indoor installation.
主な特徴
1. Transparent Architecture: The O-Clear series features a see-through structure that projects digital content through the screen. This maintains visual continuity behind the display, making it perfect for venues where architectural design and sightlines must remain visible.
2. High Brightness Output: Delivering 4500 nits of brightness, this transparent LED screen easily cuts through the complex ambient lighting of a nightclub, ensuring digital content remains crisp, vibrant, and highly visible.
3. Flicker-Free Refresh Rate: A 3840 Hz refresh rate guarantees smooth motion rendering and eliminates scanning lines or flicker. This is critical for nightclubs running fast-paced dynamic video content and camera captures.
4. Compact Module Dimensions: Measuring just 500mm x 62.5mm, the slim module size allows the display to conform to tight architectural constraints and curve along venue walls without sacrificing pixel density.
5. Rapid Deployment System: The O-Clear series is engineered for straightforward assembly. Its lightweight, modular design reduces on-site labor time and simplifies the mounting process against existing glass or structural frameworks.
6. Off-Screen Discreetness: When the display is powered down, the screen’s physical components virtually disappear. This preserves the original aesthetic of the nightclub, ensuring the technology integrates seamlessly rather than acting as a visual obstruction.
プロジェクト概要
We partnered with a prominent nightlife operator in Madrid to upgrade the visual experience at one of their premier venues. The client needed a dynamic digital solution that could amplify the club’s high-energy atmosphere without blocking sightlines or covering the venue’s custom interior design.
We delivered a 30m² P3.9×3.9 transparent LED screen, configured in four 2.5m x 3m stacks. By projecting imagery directly through the transparent mesh, the display creates a floating video effect that heightens the club’s ambiance during peak hours. When the screen is off, it blends seamlessly into the background, leaving the physical architecture untouched. This project demonstrates how modern transparent LED technology solves complex spatial challenges in commercial interior design, delivering high-impact visuals while respecting the venue’s original layout.
