홀로그램 투명 LED 포스터
O-Raster Poster Series:
O-Raster Poster Series Holographic LED Screen Poster takes the design “transparent” and “environmentally friendly” characterized ultra-thin, low- by power consumption as a breakthrough, and it is definition, high-brightness and high-transparency. It can be seat Standing or hanging behind a glass window. With more in than 90% transparency, when holographic videos or product presents videos are played, the bare-eye VR visual effect.
주요 기능:
1. Lightweight, Thin, Transparent and invisible
2. Movable and detachable
3. Free-standing and hanging
4. Floating images, 3D holographic display
5. Static display with high-definition display, rich and delicate colors
6. High contrast, high brightness, dazzling and eye-catching.

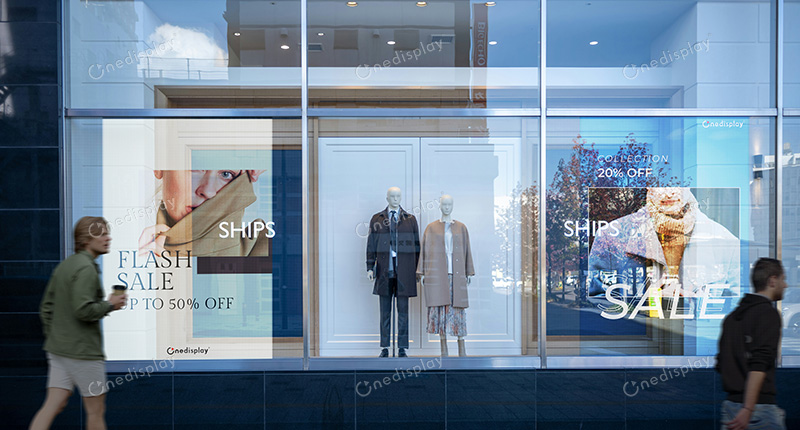

Portable Holographic Invisible Advertising Screen
Easy to install, operate, and maintain, Perfect for retail stores, event spaces, corporate offices, and more.

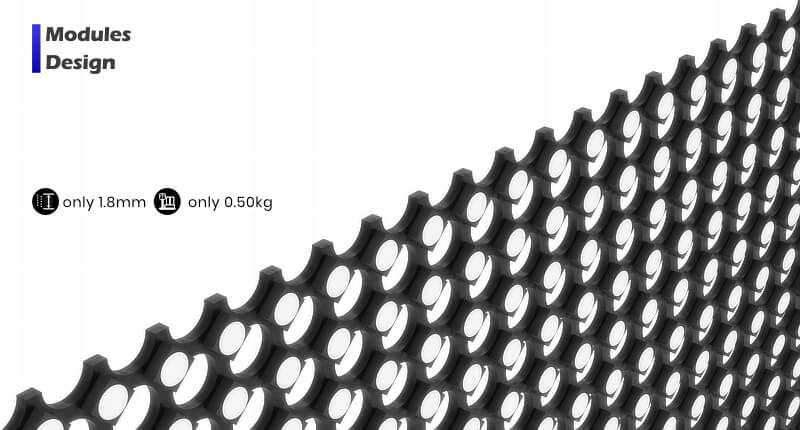

Lightweight and Ultra-Transparent
With 3.05mm light transmission holes, 1.8mm module thickness, and 0.5kg single-module weight for the best possible display effect, while maintaining optimal clearance for seamless light transmission.

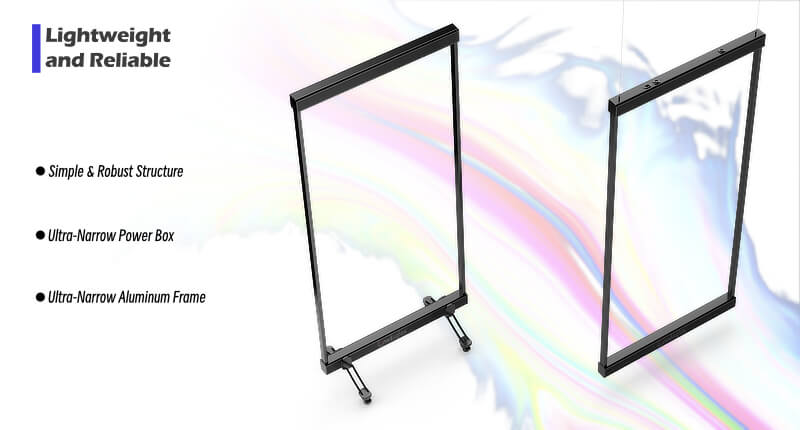

간단하고 견고한 구조
가볍고 강도가 높은 알루미늄으로 제작되었으며, 미니멀한 미학은 어떤 환경에도 자연스럽게 어울리므로 어색함을 느끼지 않습니다.

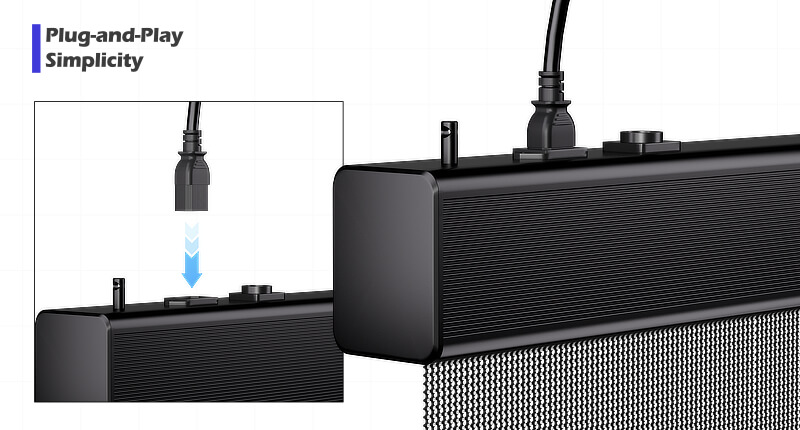

플러그 앤 플레이의 간편함
Effortlessly set up and control your screen. Just plug in the power cord, and you’re ready to go. Plus, smartphone app lets you upload and manage content on the go.

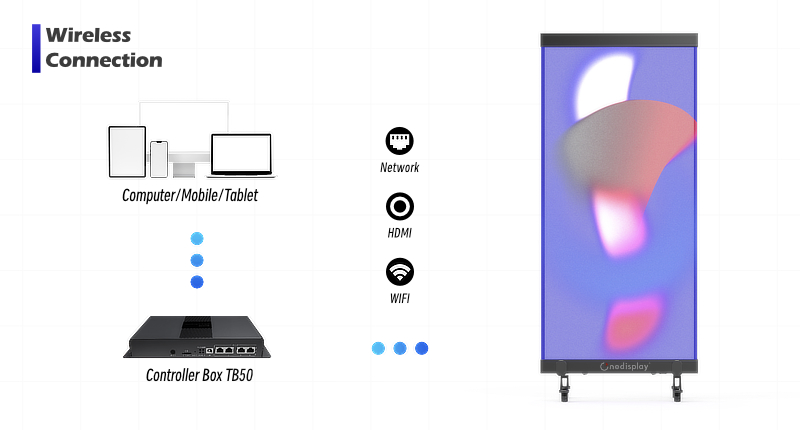

Multiple Connection Methods
It can be connected by PC or cell phone through network cable, hdmi, wifi, etc. It supports wireless uploading of pictures and videos, which can be used immediately.

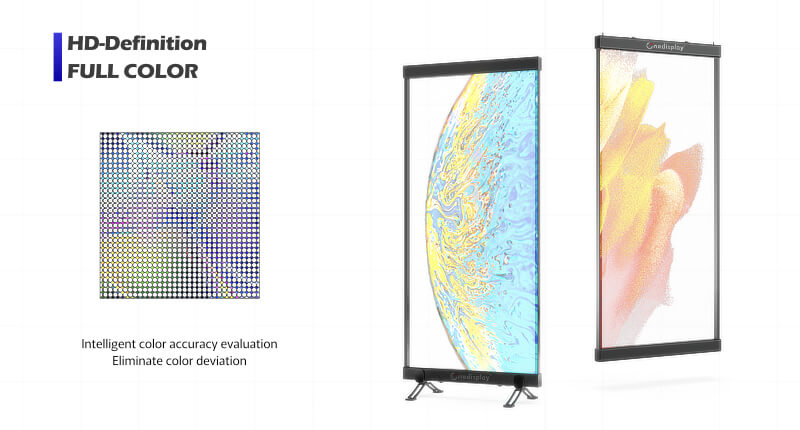

고화질 및 투명성
Enjoy vibrant, high-definition visuals with unmatched transparency. The screen’s high brightness ensures excellent visibility, while its transparency allows natural light to pass through, maintaining a bright and inviting atmosphere indoors.
유연한 변위

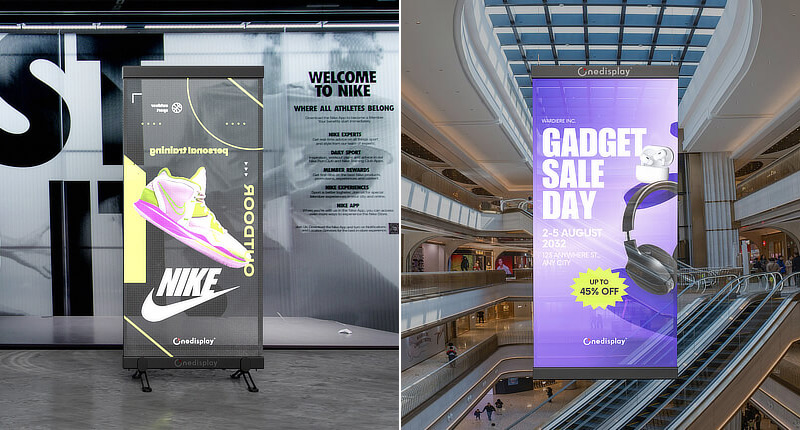

It can be easily installed on the ceiling or floor. The bottom features support feet for seamless movement. Adjust the position as needed and easily move it when required.

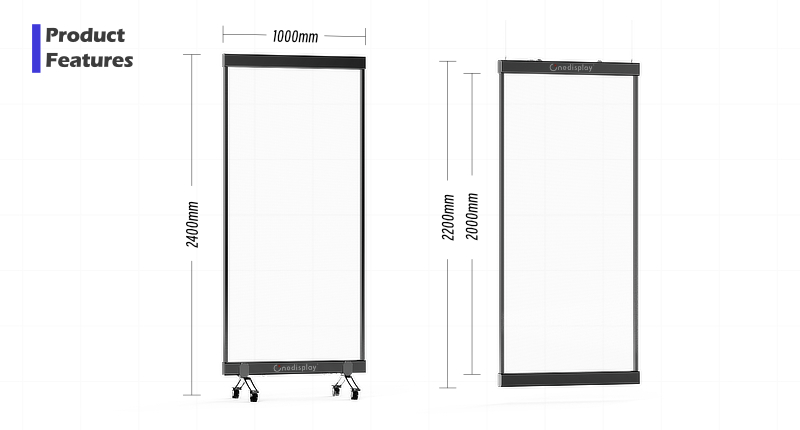

| SPECIFICATION – Floor Standling Type | ||
|---|---|---|
| 픽셀 피치 | Horizontal:3.91mm/Vertical: 3.91mm | Horizontal:3.91mm/Vertical: 3.91mm |
| Pixel Density | 65536dot/ m2 | 65536dot/ m2 |
| Visual Transparency | >92% | >92% |
| LED Type | Light & Driver Integrated | Light & Driver Integrated |
| Moudle Thickness | 1.8mm | 1.8mm |
| Moudle Size(W*H) | 2000mmx2000mm | 1000mmx2000mm |
| Resolution Ratio | 512x512pix | 256x512pix |
| Overall Dimensions | 2000mmx2400mmx500mm | 1000mmx2400mmx500mm |
| Screen Weight | 41.84kg | 25.92kg |
| Led Control System | Synchronous/Asynchronous | Synchronous/Asynchronous |
| 명도 | White balance brightness 3000-3500cd/m² | White balance brightness 3000-3500cd/m² |
| Viewing Angle | Horizontal 160, Vertical 140 | Horizontal 160, Vertical 140 |
| Resumable Transmission | Supported | Supported |
| Average Lifespan | > 100000 hours | > 100000 hours |
| 그레이 스케일 | ≥16(bit) | ≥16(bit) |
| Drive Mode | Static Driving | Static Driving |
| Power Supply Requirements | 110V ~ 220V+10%, AC50HZ, three-phase five-wire | 110V ~ 220V+10%, AC50HZ, three-phase five-wire |
| Max. Power Consumption | 1600W/m² | 1600W/m² |
| Ave.Power Consumption | 640W/m² | 640W/m² |
| Working Temperature | -20℃~+60℃ | -20℃~+60℃ |
| Working Humidity | 10% RH ~ 85% RH, no condensation | 10% RH ~ 85% RH, no condensation |
| SPECIFICATION – Hanging Up Type | ||
|---|---|---|
| 픽셀 피치 | Horizontal:3.91mm/Vertical: 3.91mm | Horizontal:3.91mm/Vertical: 3.91mm |
| Pixel Density | 65536dot/ m2 | 65536dot/ m2 |
| Visual Transparency | >92% | >92% |
| LED Type | Light & Driver Integrated | Light & Driver Integrated |
| Moudle Thickness | 1.8mm | 1.8mm |
| Moudle Size(W*H) | 2000mmx2000mm | 1000mmx2000mm |
| Resolution Ratio | 512x512pix | 256x512pix |
| Overall Dimensions | 2000mmx2200mmx55mm | 1000mmx2200mmx55mm |
| Screen Weight | 31.84kg | 15.92kg |
| Led Control System | Synchronous/Asynchronous | Synchronous/Asynchronous |
| 명도 | White balance brightness 3000-3500cd/m² | White balance brightness 3000-3500cd/m² |
| Viewing Angle | Horizontal 160, Vertical 140 | Horizontal 160, Vertical 140 |
| Resumable Transmission | Supported | Supported |
| Average Lifespan | > 100000 hours | > 100000 hours |
| 그레이 스케일 | ≥16(bit) | ≥16(bit) |
| Drive Mode | Static Driving | Static Driving |
| Power Supply Requirements | 110V ~ 220V+10%, AC50HZ, three-phase five-wire | 110V ~ 220V+10%, AC50HZ, three-phase five-wire |
| Max. Power Consumption | 1600W/m² | 1600W/m² |
| Ave.Power Consumption | 640W/m² | 640W/m² |
| Working Temperature | -20℃~+60℃ | -20℃~+60℃ |
| Working Humidity | 10% RH ~ 85% RH, no condensation | 10% RH ~ 85% RH, no condensation |
| SPECIFICATION – Double Side Hanging Up Type | ||
|---|---|---|
| 픽셀 피치 | Horizontal:3.91mm/Vertical: 3.91mm | Horizontal:3.91mm/Vertical: 3.91mm |
| Pixel Density | 65536dot/ m2 | 65536dot/ m2 |
| Visual Transparency | >92% | >92% |
| LED Type | Light & Driver Integrated | Light & Driver Integrated |
| Moudle Thickness | 3.6mm(Double Side) | 3.6mm(Double Side) |
| Moudle Size(W*H) | 750mmx1208mm | 1000mmx1508mm |
| Resolution Ratio | 192x300pix | 256x376pix |
| Overall Dimensions | 765mmx1350mmx55mm | 1065mmx1650mmx55mm |
| 설치 방법 | Vertical | Vertical |
| Led Control System | Synchronous/Asynchronous | Synchronous/Asynchronous |
| 명도 | White balance brightness 3000-3500cd/m² | White balance brightness 3000-3500cd/m² |
| Viewing Angle | Horizontal 160, Vertical 140 | Horizontal 160, Vertical 140 |
| Resumable Transmission | Supported | Supported |
| Average Lifespan | > 100000 hours | > 100000 hours |
| 그레이 스케일 | ≥16(bit) | ≥16(bit) |
| Drive Mode | Static Driving | Static Driving |
| Power Supply Requirements | 110V ~ 220V+10%, AC50HZ, three-phase five-wire | 110V ~ 220V+10%, AC50HZ, three-phase five-wire |
| Max. Power Consumption | 1335W/m² | 1335W/m² |
| Ave.Power Consumption | 534W/m² | 534W/m² |
| Working Temperature | -20℃~+60℃ | -20℃~+60℃ |
| Working Humidity | 10% RH ~ 85% RH, no condensation | 10% RH ~ 85% RH, no condensation |
