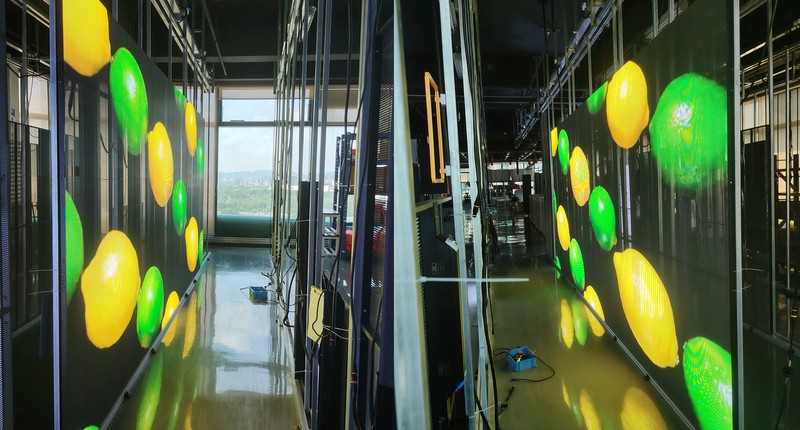

We just finished a 15m² transparent LED display project for a clothing store in Japan. It’s in their front window, using our O-Clear series with a P3.9-3.9 pixel pitch.
Technische specificaties
1. Productmodel: O-Clear-serie
2. Pixelafstand: P3.9-3.9
3. Schermafmetingen: 6m × 2.5m
4. Totale weergaveoppervlakte: 15 m²
5. Modulegrootte: 500 × 62.5 mm
6. Aantal modules: 480 pcs
7. Helderheid: 4,500 nits
8. Vernieuwingsfrequentie: 3840 Hz
9. Verzending: Verpakking in een houten krat
Voorraad reserveonderdelen
1. Weergavemodules: 38 pcs (19 pcs for left side + 19 pcs for right side)
2. Reservevoedingen: 3 eenheden
3. Kaarten ontvangen: 3 stuks
4. HUB-kaarten: 3 stuks
5. Reserve-IC's: 90 pcs
6. Signaalkabels: 19 pcs
7. Stroomkabels: 7 stuks
8. Montagemateriaal: Geconfigureerd volgens de werkelijke vereisten.
Belangrijkste kenmerken
1. Lightweight Construction: Lightweight and simple design allows for easy installation and handling, minimizing structural load requirements for suspended installations
2. Versatile Commercial Applications: Suitable for a wide range of indoor commercial applications including retail stores, shopping malls, and showrooms
3. Ultra-High Refresh Rate: 3,840 Hz refresh rate ensures smooth, flicker-free visual performance with no visible scan lines during camera capture
4. High Brightness Output: 4,500 nits brightness delivers vivid and clear content even in well-lit indoor environments with strong ambient lighting
5. Transparent Design: Excellent transparency provides unobstructed background visibility while displaying dynamic content, maintaining natural storefront aesthetics
6. Retail-Focused Solution: Ideal for brand retail stores, shopping malls, and automotive showrooms requiring high-impact visual presentations
Projectoverzicht
This was a project we worked on with partners on the ground in Japan. The store wanted a modern way to catch eyes from the street, and this transparent display does that without blocking the actual window. It’s a good fit for this kind of retail spot, where showing the product and the digital content together is the whole point.
We used our O-Clear series for it. The main reasons were the screen’s transparency, how light it is, and the picture quality. For a window display, you need all three. It has to be clear enough not to feel like a solid wall, light enough to hang securely, and sharp enough to look good from the street.
It’s a practical solution for a specific spot. Retail spaces in Japan are competitive, and a lot of stores are looking for ways to grab attention without completely blocking their windows. This project was one way to do that.
