We finished installing a 47.84 m² holographic transparent LED display in a Canadian bank. The project uses our O-Raster series with a P3.9-3.9 pixel pitch, mounted by hanging in the bank’s lobby. It will run the bank’s own brand advertisements, creating a striking and modern visual centerpiece for the institution’s lobby.
Technical Specifications
1. Product Model: O-Raster Holographic Transparent Series
2. Pixel Pitch: P3.9-3.9 mm
3. Display Configuration: Main Screen (5.836m x 2m) + Auxiliary Screen (0.488m x 2m)
4. Total Display Area: 47.84 m²
5. Module Dimensions: 250mm x 1000mm & 238.3mm x 1000mm
6. Total Modules: 196 pieces
7. Brightness: 2000-3000 nits (optimised for controlled indoor lighting)
8. Refresh Rate: 3840 Hz (for flicker-free video playback)
9. Packaging: Custom wooden crates for secure international shipping、

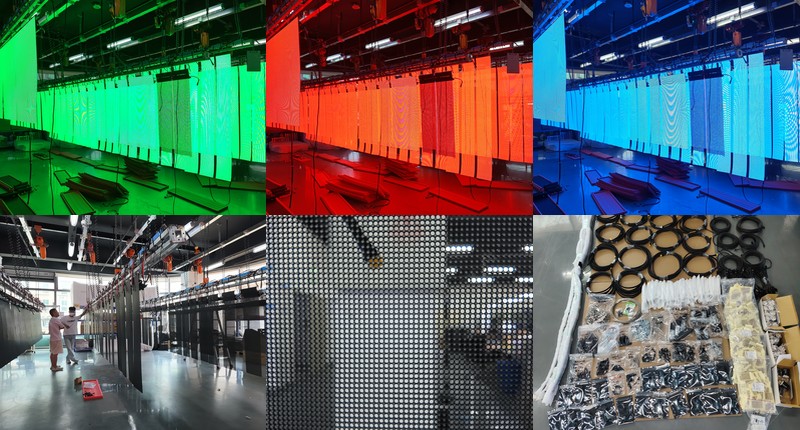

Spare Parts Inventory
We provided a comprehensive spare parts kit to ensure long-term operational reliability:
1. Display Modules: 24 pcs (including different sizes for full coverage)
2. Backup Power Supplies: 20 units
3. Receiving Cards: 20 pcs
4. Signal Cables: 106 pcs (various lengths for installation flexibility)
5. Power Cables: 15 pcs
6. Mounting Hardware: Full set of weather-resistant screws, brackets, and fasteners
Key Features
1. Transparent Visual Effect: The 80-90% transparency rate allows the LED content to blend with the physical environment, creating a “holographic” floating image effect that doesn’t block sightlines or architectural features.
2. High-Brightness Performance: With 2000-3000 nits, the display remains vibrant and readable even under bright lobby lighting conditions, ensuring advertising messages are always clear.
3. Ultra-Smooth Playback: A 3840 Hz refresh rate eliminates motion blur and flicker, delivering premium-quality video advertisements that enhance the bank’s modern image.
4. Rapid Installation Design: The lightweight module design and simplified hanging structure allowed our installation team to complete the assembly efficiently, minimizing disruption to the bank’s daily operations.
5. Modular & Serviceable: Each 250x1000mm module can be individually replaced from the front, enabling straightforward maintenance without dismantling the entire structure.
6. Premium Commercial Application: Specifically designed for high-end indoor venues like financial institutions, luxury retail, and corporate lobbies where brand image and spatial aesthetics are critical.
Project Overview
This project was awarded to us through strategic partnership with our local partner in Canada. The O-Raster holographic transparent LED display has been successfully installed in a local bank’s interior space using a hanging installation method. The primary purpose is to showcase financial brand advertisements in a modern, eye-catching manner.
The O-Raster series offers excellent transparency and visual effects, making it an ideal choice for premium indoor commercial venues such as brand retail stores, shopping malls, and automotive 4S dealerships.
We’re seeing more of these projects in North America. This one went smoothly—the bank is happy with the look. The weight per square meter on these modules is low, which definitely helped with the ceiling installation.
