Indoor Front Maintenance Ultra-thin Led Screen
O-Tile Series:

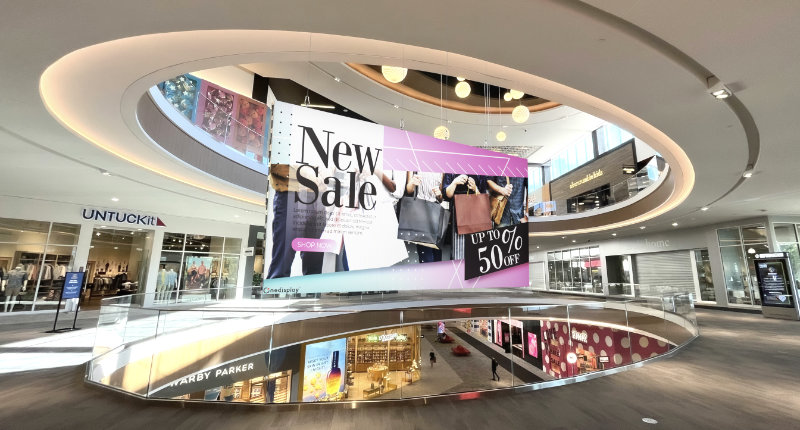

Indoor Front Maintenance Ultra-thin Led Screen is usually be used for: Fashion Shop, Meeting Room Video Wall, Church Led Wall, Shop Windows Advertising, Airport, etc.
Key Features:
1. Front service for Wall mount Hoisting, Double-sided lifting, Shelf screen installation,
2. 250×250mm/250x750mm/1000×250mm cabinet size can be customized to build any size screen project,
3. Cabinet weight 2/5.5kg, fast and easy installation, Thickness 41.6 mm only, Smart and neat.
4. High refresh ≥ 3840Hz, HDR-high resolution, High Grayscale.

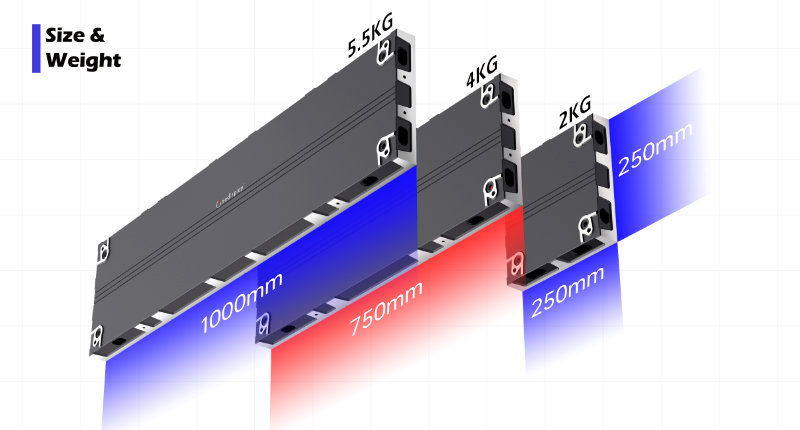

Size & Weight
Various panel sizes allow you to flexibly build a wide range of screen designs, with each cabinet weighing only 2-5.5kg and a thickness of just 41.6 millimeters, designed to be compact and space-saving.

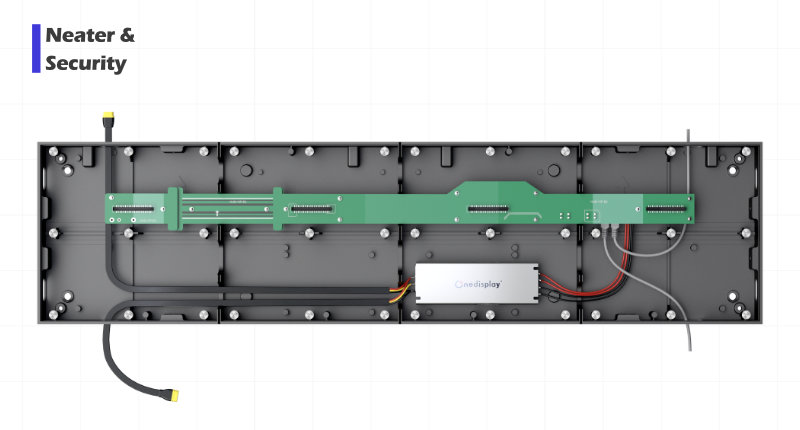

Neater & Security
Whether it’s wires or network cables, our concealed cable design for simplified wiring, ensuring elegant and safe installation.

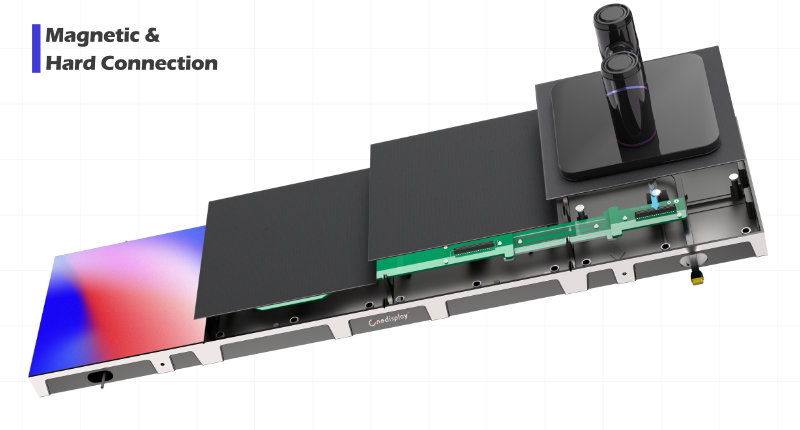

Magnetic & Hard Connection
Magnetic & hard connection front service module is designed for easy installation to ensure low failure rates and high reliability. all electronic components are front-accessible for simplifying maintenance.

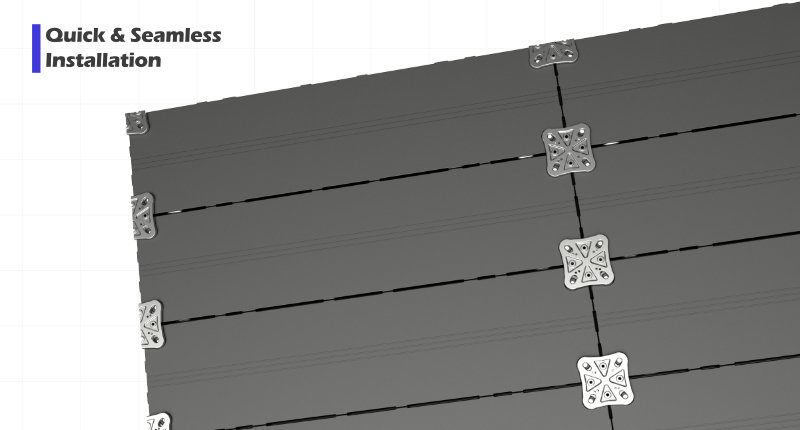

Quick & Seamless Installation
Die-cast aluminum cabinet with precise, design for improved flatness, and high-precision connectors are crafted to simplify and enhance installation efficiency.

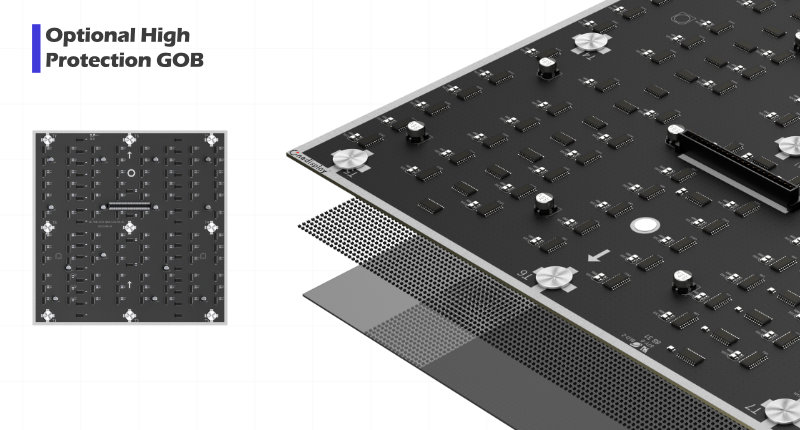

Optional High Protection GOB
Optional Led modules with polymer-encapsulated to withstand certain mechanical stresses, sealing against dust and moisture, ensuring reliability in demanding environments and frequent human contact.

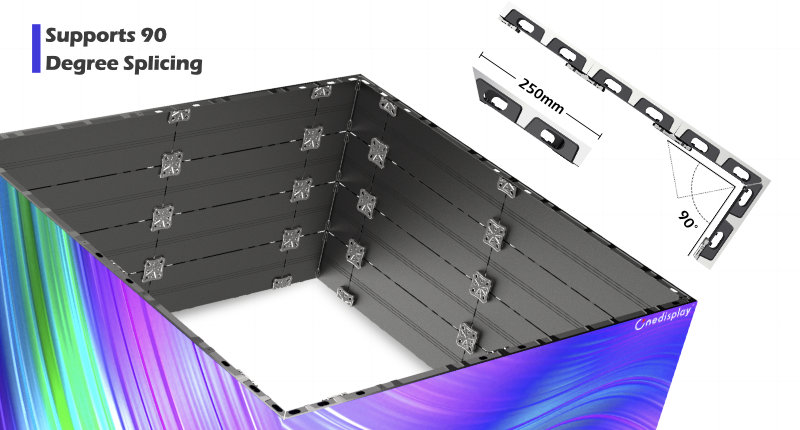

Supports 90 -Degree Splicing
Supports 90-degree splicing, allowing for innovative corner display solutions. Whether for retal, exhibitions, or events, enabling you to design unique installations that maximize your space.
Multiple Installation
Flexible Structural Design that supports various installation methods, including wall mounting, hoisting, double-sided hoisting, and shelf screen installation, ensures adaptability and ease in different setups.

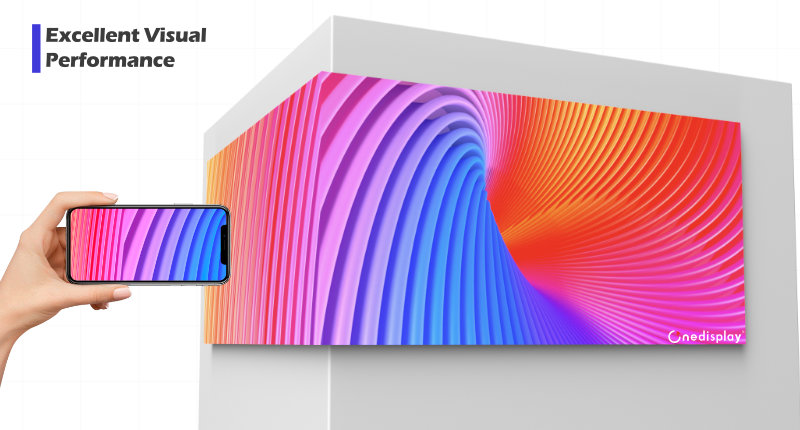

Excellent Visual Performance
High refresh rate of 3840Hz, High Dynamic Range, high-resolution display, and advanced 24-bit grayscale capabilities delivers exceptional color performance and visual impact, so provides an outstanding viewing and shooting experience.
To ensure that you could make the correct solution, Please continue to read the following introduction and download our specifications. If you can not find what you are looking for, please contact us.
| Pixel Pitch (mm) | P1.9, P2.6, P2.97, P3.9 |
|---|---|
| Cabinet Size(mm) | 250*250/1000*250 |
| Refresh Rate(Hz): | 1920Hz-3840Hz |
| Key Point: | Indoor front service Wall mount, Hoisting, Double-sided lifting, Shelf screen installation |
| O-Tile Basic Brightness | ||||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.95mm | 2.5mm | 2.6mm | 2.97mm | 3.91mm |
| Led Lamp Bead Model | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Moudle Reslution(W*H) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 |
| Moudle Size(W*H) | 250x250mm | |||||
| Panel Reslution(W*H) | 640×160 | 512×128 | 400×100 | 384×96 | 336×84 | 256×64 |
| Panel Size(W*H*D) | 1000x500x41.6mm / 1000x250x41.6mm / 750x250x41.6mm / 250x250x41.6mm | |||||
| Density of Pixel (dots/m²) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module Arrangement(W*H) | 4×2 / 4×1 / 3×1 /1×1 | |||||
| Panel Weight(kg/panel) | 5.5kg / 4kg / 2kg | |||||
| Panel Material | Die-casting Aluminum | |||||
| Moudle/Panel Fixed Way | Front | |||||
| Viewing Angle | 160°/160° | |||||
| Driving Method | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Brightness | 500nits | 800nits | 1200nits | 800nits | 800nits | 800nits |
| Optimum Viewing Distance | ≥1.5m | ≥1.9m | ≥2.5m | ≥2.6m | ≥2.9m | ≥3.9m |
| IP Grade | IP43 | |||||
| Frame Change Frequency | 60hz | |||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | |||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | |||||
| Signal Input | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | |||||
| Operating Voltage | AC：110V~240V、50~60Hz | |||||
| Maximum Power(W/m²) | 500 | 600 | 550 | 550 | 400 | 430 |
| Average Power(W/m²) | 160 | 180 | 160 | 160 | 120 | 125 |
| Operating Environment | -20℃～50℃ 10％～90％RH | |||||
| O-Tile High Brightness | ||||
|---|---|---|---|---|
| Pixel Pitch | 1.95mm | 2.6mm | 2.97mm | 3.91mm |
| Led Lamp Bead Model | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Moudle Reslution(W*H) | 128×128 | 96×96 | 84×84 | 64×64 |
| Moudle Size(W*H) | 250x250mm | |||
| Panel Reslution(W*H) | 512×128 | 384×96 | 336×84 | 256×64 |
| Panel Size(W*H*D) | 1000x250x41.6mm / 750x250x41.6mm / 250x250x41.6mm | |||
| Density of Pixel (dots/m²) | 262144 | 147456 | 112896 | 65536 |
| Module Arrangement(W*H) | 4×1 / 3×1 /1×1 | |||
| Panel Weight(kg/panel) | 5.5kg / 4kg / 2kg | |||
| Panel Material | Die-casting Aluminum | |||
| Moudle/Panel Fixed Way | Front | |||
| Viewing Angle | 160°/160° | |||
| Driving Method | 1/32 | 1/32 | 1/28 | 1/16 |
| Brightness | 4000nits | 4000nits | 4500nits | 4500nits |
| Optimum Viewing Distance | ≥1.5m | ≥2.6m | ≥2.9m | ≥3.9m |
| IP Grade | IP43 | |||
| Frame Change Frequency | 60hz | |||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | |||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | |||
| Signal Input | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | |||
| Operating Voltage | AC：110V~240V、50~60Hz | |||
| Maximum Power(W/m²) | 600 | 550 | 400 | 430 |
| Average Power(W/m²) | 180 | 160 | 120 | 125 |
| Operating Environment | -20℃～50℃ 10％～90％RH | |||
