Indoor Fixed Installation HD Transparent Led Screen
O-CLEAR Series:

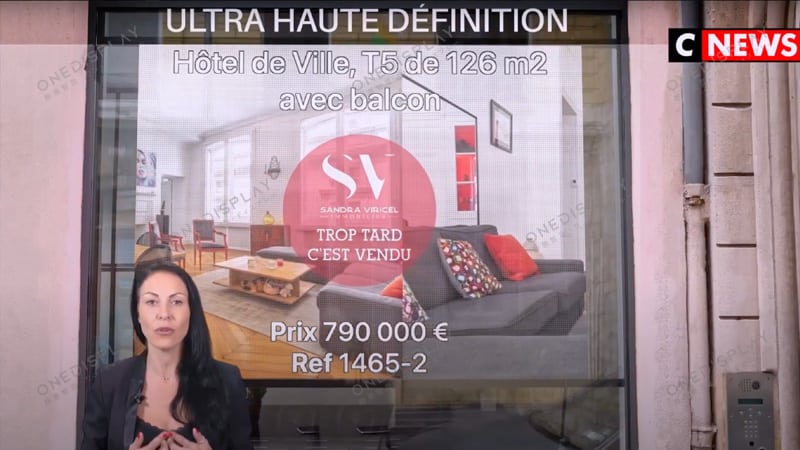

It is used for shopping malls, mobile phone shops, retail chain stores, window glass led display, Auto 4S shops, etc. O-CLRAR Series is the right one to choose if you need to make the light come through inside of the building while displaying the LED advertising.
Key Features:
1. Super thin&light: less than 11kg/m², and can be arbitrary stitching,
2. High transparency & brightness: More than 4500-5000nits with Hidden wire design,
3. Save labor costs: Quickly open and close the power box with one hand,
4. Equipped with quick plug-in parts, convenient for the event,
5. Customised cabinet sizes to meet different project needs,
6. Edge protection design avoid led collision for a longer lifespan.
Higher transparency and infinite possibilities
O-CLEAR series is based on positive-lighting technology, its high transparency able to reach 80%.
High Brightness
Peak brightness up to 4500-5000NITS, even if installed in a glass window exposed to direct sunlight, can be viewed clearly.
Multiple specifications to adapt to different installation environments
O-CLEAR transparent LED display offers the flexibility of design and shape to deliver a truly free and inspirational installation.
Modular design
Using high-precision PCB cutting process, so that the width of a single layer of PCB board is just to accommodate a lamp bead,
leaving enough space for the light transmission layer!
Light and reliable aluminum architecture
Aluminum cabinet architecture results in advanced heat dissipation and management and longevity of life, Only 11 kg per square meter, fixtures on the cabinet are strengthened to improve reliability and protect the cabinet from erosion.
Flexible Frame Design

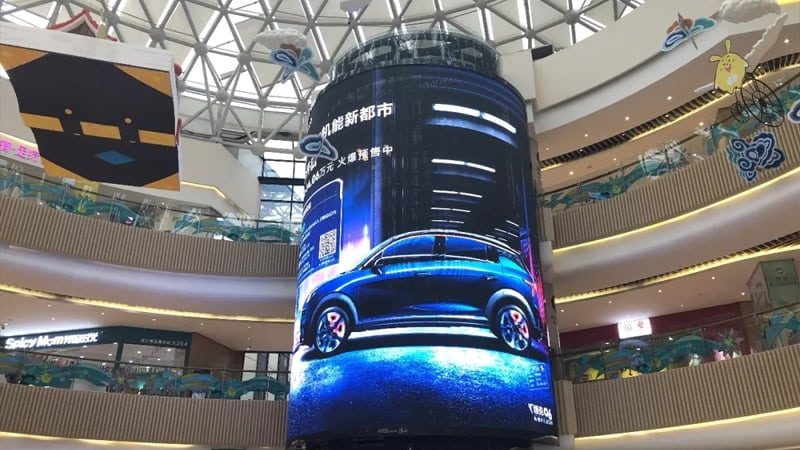

Supports curved installation to match the project requirements at the installation site.
Easy Maintain Easy Installation
Quick-lock disassembly, Only one person can maintain it independently.


To ensure that you could make the correct solution, Please continue to read the following introduction and download our specifications. If you can not find what you are looking for, please contact us.

Pixel Pitch(mm): | 2.6mm, 2.6-5.95mm, 3.47mm, 3.9-7.81mm, 10.42mm |
---|---|
Cabinet Size(mm): | 500×500mm, 1000×500mm, 1000×1000mm |
Refresh Rate(Hz): | 1920Hz, 3840Hz |
Key Point: | The first module dual backup design in the industry , Dual fail-safe, Escort for Rental and Fixed installation Market. |
HD Transparent Led Display | ||||
ITEM | P2.6 | P2.97 | P3.47 | P3.91 |
LED lamp bead model | SMD1415 | SMD1415 | SMD1415 | SMD1415 |
Pixel Pitch | 2.6-2.6mm | 2.97-2.97mm | 3.47-3.47mm | 3.91-3.91mm |
Module Resolution(W*H) | 192*24 | 168*21 | 144*24 | 128*16 |
Module Size(W*H) | 500*62.5mm | 500*62.5mm | 500*83.28mm | 500*62.5mm |
Module Fixed Way | Front Access (Screw) | |||
Cabinet Resolution(W*H) | 192*192/192*384 | 336*168/336*336 | 288*216/288*288 | 256*128/256*256 |
Cabinet Size(W*H) | 500*500/500*1000 | 1000*500/1000*1000 | 1000*750/1000*1000 | 1000*500/1000*1000 |
Module Arrangement(W*H) | 1*8/1*16 | 2*8/2*16 | 2*9/2*12 | 2*8/2*16 |
Density of Pixel (dots/m2) | 147456 | 112896 | 82944 | 65536 |
Transparency rate | 40% | 42% | 45% | 50% |
Cabinet Weight(kg/SQM) | 12.5kg | 12kg | 11kg | 10kg |
Refresh rate | 3840Hz | 3840Hz | 2800Hz | 3840Hz |
Scan Method | 24 Scan | 21 Scan | 16 Scan | 16 Scan |
Cabinet Material | Aluminum | |||
Brightness | 5000 | |||
Viewing angle | 140°/140° | |||
Gray scale | 14bit-16bit | |||
Signal Input | Universal | |||
Operating Voltage | AC: 110V~240V、 50~60Hz | |||
Maximum Power(W/m2) | 800 | |||
Average power(W/m2) | 240 | |||
High Transparent Led Display | ||||
ITEM | P2.6-5.9 | P2.8-5.6 | P3.9-7.81 | P10.4 |
LED lamp bead model | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
Pixel Pitch | 2.6-5.95mm | 2.8-5.6mm | 3.9-7.81mm | 10.4-10.4mm |
Module Resolution(W*H) | 192*12 | 176*22 | 128*16 | 48*12 |
Module Size(W*H) | 500*71.4mm | 500*125mm | 500*125mm | 500*125mm |
Module Fixed Way | Front Access (Screw) | |||
Cabinet Resolution(W*H) | 384*84/168 | 352*88/176 | 256*64/128 | 96*48/96 |
Cabinet Size(W*H) | 1000*500/1000 | 1000*500/1000 | 1000*500/1000 | 1000*500/1000 |
Module Arrangement(W*H) | 2*7/2*14 | 2*4/2*8 | 2*4/2*8 | 2*4/2*8 |
Density of Pixel (dots/m²) | 64512 | 61952 | 32768 | 9216 |
Transparency rate | 55% | 60% | 75% | 80% |
Cabinet Weight(kg/SQM) | 10kg | 10kg | 10kg | 10kg |
Refresh rate | 1920-3840Hz | 3840Hz | 2800Hz | 3840Hz |
Scan Method | 12 Scan | 11 Scan | 8 Scan | 3 Scan |
Cabinet Material | Aluminum | |||
Brightness | 5000 | |||
Viewing angle | 140°/140° | |||
Gray scale | 14bit | |||
Signal Input | Universal | |||
Operating Voltage | AC: 110V~240V、 50~60Hz | |||
Maximum Power(W/m2) | 800 | |||
Average power(W/m2) | 240 |
