Transparent LED Poster Screen

O-Clear Poster Series:
Revolutionize your marketing strategy with the Modular Transparent LED Poster with Freely Splicing. Ditch the outdated roll-up banners and embrace the future. Harness the power of wireless control through your mobile device and WIFI to deliver dynamic advertising LED displays that will not just attract customers but leave a lasting impact with crystal-clear promotional content.

Key Features:
1. Plug and Play: Quick and simple setup.
2. Ultra transparency: Exceptional visual clarity.
3. WiFi control: Remote management.
4. High definition: Superior image quality.

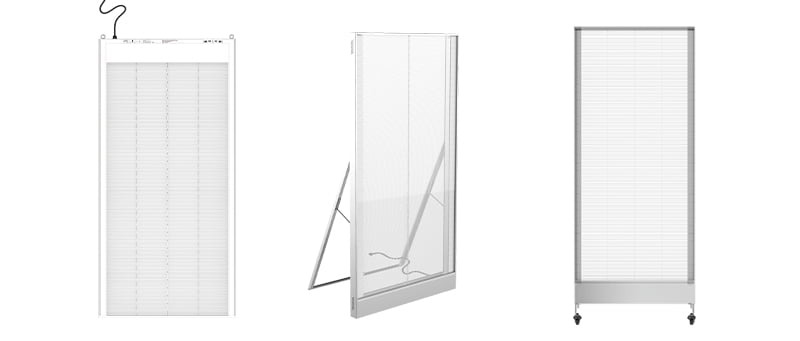

5. Movable and standing placement: Versatile positioning options.

Product Features

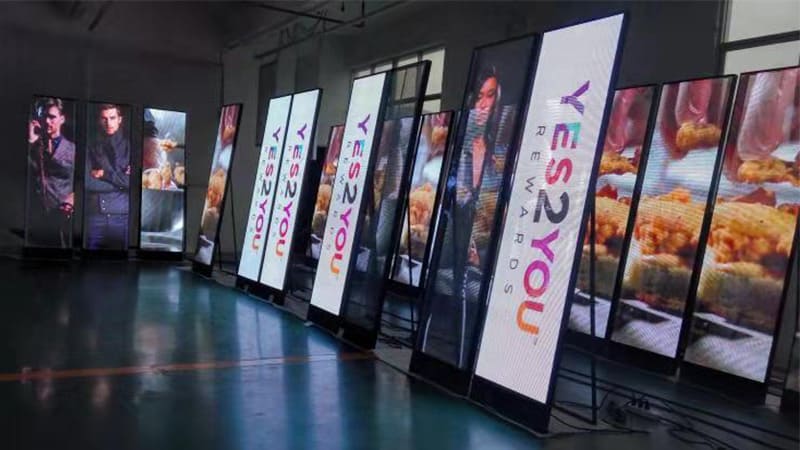

Portable transparent advertising screen

Can be hung, stand, ready to use when power is on, WIFI mobile phone control APP, multiple playbacks.

transparent led poster screen

High Transparent&High Brightness

Up to 75% transparency and 4500 nit brightness make the display more outstanding and the view more transparent.

transparent led poster screen

Light Weight & QuickPortable and Flexible,

Easy to move and install, What You need is only a power cable.

transparent led poster screen

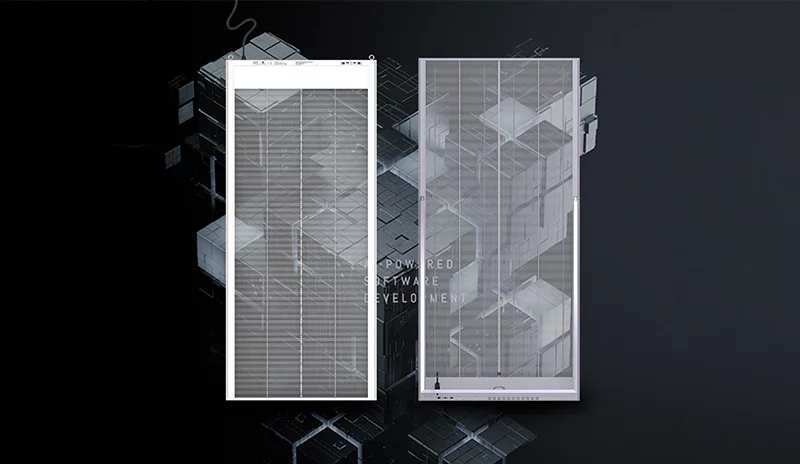

Ultra-compatible & Modular

Aesthetic modular design,Interchangeable modules for versatility.

transparent led poster screen

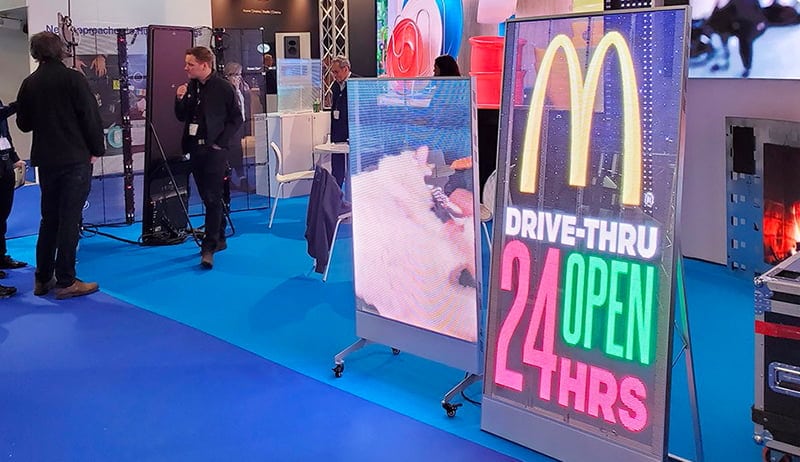

Case Study
transparent led poster screen
Videoo & Download

To ensure that you could make the correct solution, Please continue to read the following introduction and download our specifications.

If you can not find what you are looking for, please contact us.

Product Specification
Pixel Pitch(mm):


Panel Size(mm):

755.2x1200mm, 755.2x1600mm, 755.2x2000mm

Refresh Rate(Hz):


Key Point:

Portable transparent advertising screen( this can be hanging, standing, Wifi mobile phone control APP, multiple playback.

Product Specification
Pixel Pitch 2.8-5.6mm 3.9-7.8mm 3.47-3.47mm 3.9-3.9mm
LED Lamp Bead Model SMD1921 SMD1921 SMD1921 SMD1921
Module Resolution(W*H) 176×22 dot 128×16 dot 144×24 dot 128×16 dot
Module Size(W*H) 500x125mm 500x125mm 500×62.5mm 500×62.5mm
Display Size(W*H*D) 1000x2000x90mm
Frame Size(W*H*D) 1000x2093x90mm
Frame Size With Stand(W*H) 1000x2297x600mm
Frame Size With Wheel(W*H) 1000x2372x600mm
Module Arrangement(W*H) 2×16 2×16 2×32 2×32
Density of Pixel (dots/m2) 61952 dots 32768 dots 82944 dots 65536 dots
Transparency rate 60% 75% 45% 50%
Scan Method 11 Scan 8 Scan 16 Scan 16 Scan
Panel Weight(kg/pcs) 20KG (26.5KG with Stand; 29.5KG With Wheels)
Cabinet Material Aluminum frame
Maintenance Way Front
Viewing angle 140°/140°
Brightness 4500nits
Gray scale 16bit
Refresh rate 3840Hz
Signal Input AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating Voltage AC:110V~240V、50~60Hz
Maximum Power(W/m2) 800
Average power(W/m2) 240
Operating environment -20℃~60℃ 10%~90%RH
