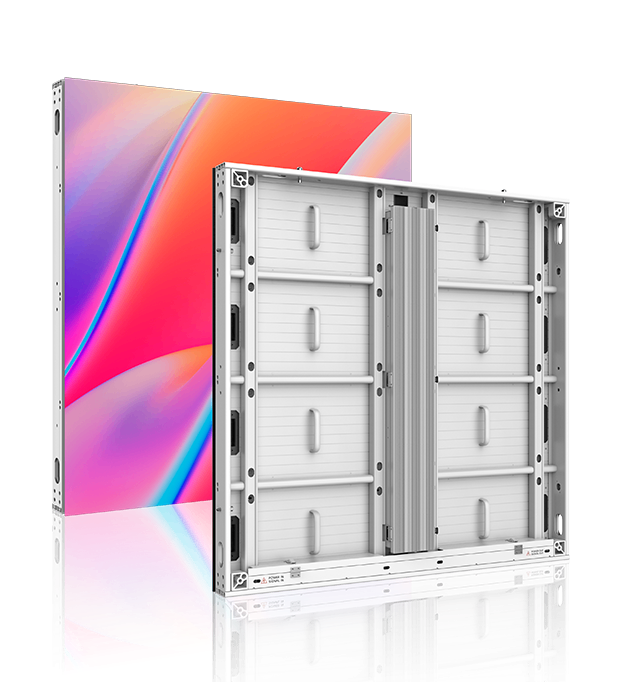

Outdoor Fixed Installation Led Display
O-SMART Series:
O-Smart series is not restricted by the installation environment, it can meet most outdoor fixed installation scenarios in the market due to the simple cabinet splicing. For instance, covering but not limited to conventional stacking projects, base installation projects, single/double column type for broadcast projects, and outdoor wall-mounted large billboard projects etc.
Key Features:
1. Front & Rear dual service option for outdoor fix installation,
2. 90-degree angle&Flat led screen with the same module,
3. IP67 Module with lightweight only 29KG/Panel,
4. Noise-free, elegant housing design,
5. High reliability, wide application and brightness up to 10,000 nits.

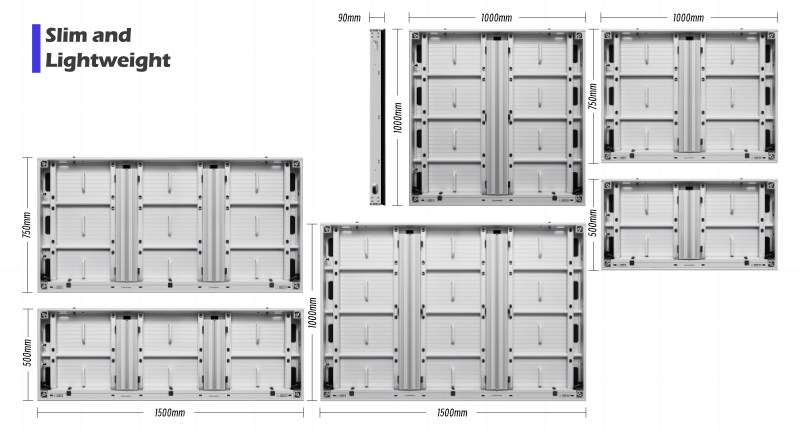

Slim and Lightweight Design

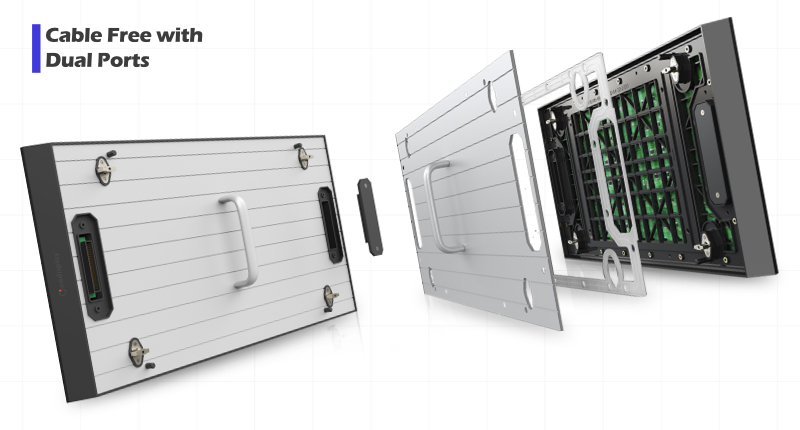

Cable Free with Dual Ports
Dual power/signal ports, hidden design, support left/right modules interchangeable connection. Module 45° angle design, easy to deal with various right-angle projects.

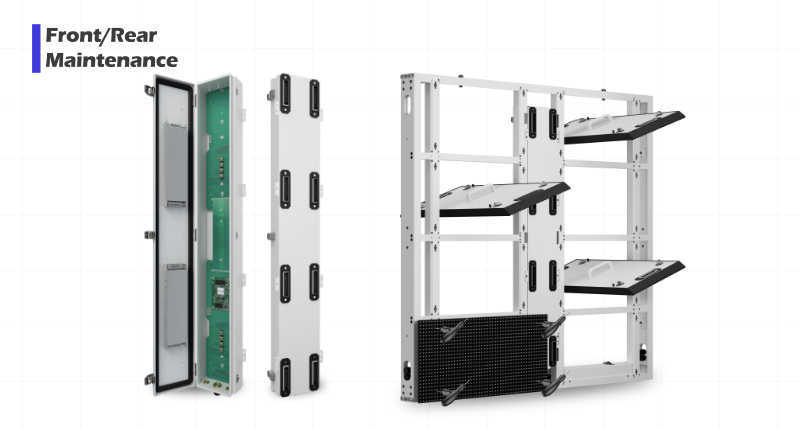

Fast Front/Rear Maintenance
Modules, power supply and other components can be disassembled from the front, which is convenient to maintain the screen. At the same time, traditional rear maintenance is also supported. You can choose the maintenance way according to the situation.

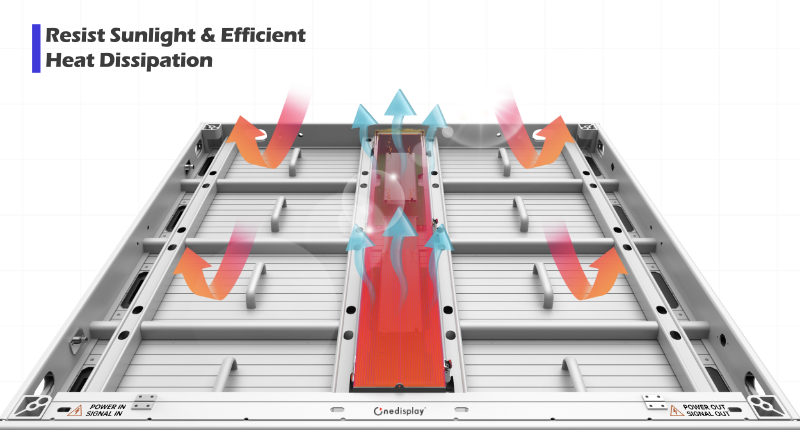

Resist Sunlight & Efficient Heat Dissipation
No fan design, the module is equipped with aluminum alloy back cover, the rear cover of the aluminum alloy power box is covered with a large-area heat dissipation fin to fully contact the air, which has high thermal conductivity and good heat dissipation effect.

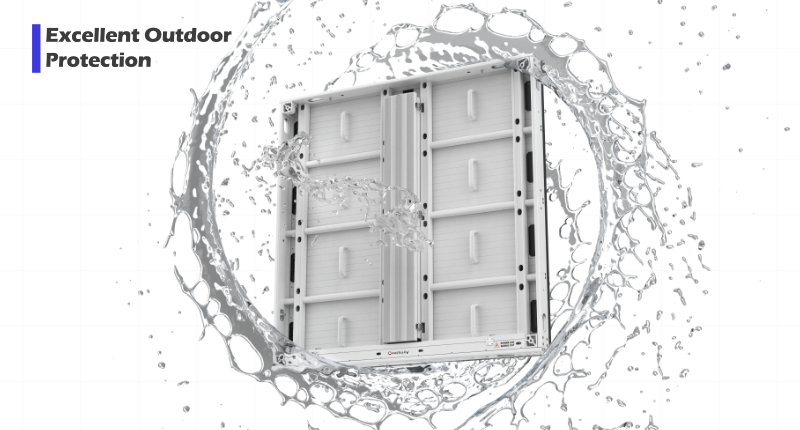

Excellent Outdoor Protection
To make the function of the LED screen safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rains and strong winds, which can let electronic parts avoid being affected by dampness and dust.
Corner Splicing Design
Supports right angle 90-degree splicing, curved 90-degree splicing, adapts to various building surfaces, bringing immersive naked-eye 3D effects to outdoor large screens.

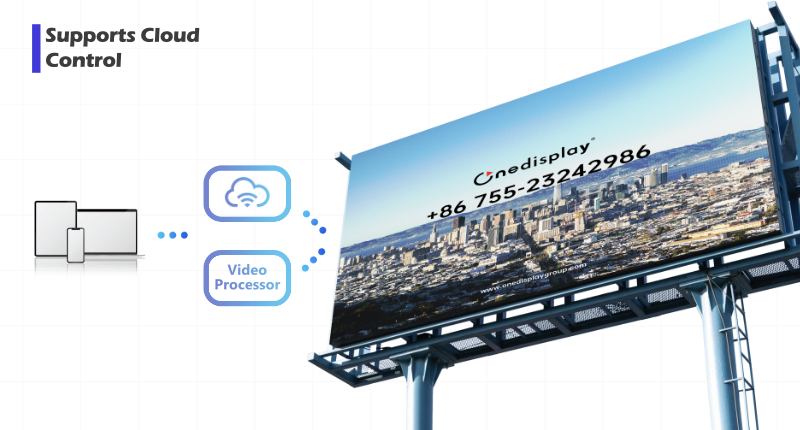

Supports Cloud Control
Supports cloud-based remote control, allowing you to control your display and basic display functions from anywhere, at any time. Supports creating, scheduling, and organizing content on various devices.
To ensure that you could make the correct solution, Please continue to read the following introduction and download our specifications. If you can not find what you are looking for, please contact us.
| Pixel pitch(mm) | 3.91mm, 4.81mm, 6.25mm, 7.8mm, 10.4mm |
|---|---|
| Cabinet Size(mm): | 1000x1000mm, 1000x1500mm, 1500x1000mm |
| Refresh Rate(Hz): | 1920-3840Hz |
| Key Point: | Front & Rear dual service option, Corner&Flat led screen with the same module,Modular Power box; light weight |
| O-Smart | ||||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm | 7.8mm | 10.4mm |
| Led Lamp Bead Model | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Moudle Size(W*H) | 500x250mm | 500x250mm | 500x250mm | 500x250mm | 500x250mm | 500x250mm |
| Module Resolution(W*H) | 168×84 | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 |
| Cabinet Size(W*H) | 1000x1000mm | 1000x1000mm | 1000x1000mm | 1000x1000mm | 1000x1000mm | 1000x1000mm |
| Cabinet Resolution(W*H) | 336×336 | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
| Density of Pixel (dots/m²) | 112896 | 65536 | 43264 | 25600 | 16384 | 9216 |
| Best Viewing Distance | ≥3 m | ≥4 m | ≥5m | ≥6.5 m | ≥8 m | ≥11 m |
| Panel Weight（kg/m²) | 29kg | 29kg | 29kg | 29kg | 29kg | 29kg |
| Scan Method | 1/21 Scan | 1/8 Scan | 1/7 Scan | 1/5 Scan | 1/4 Scan | 1/2 Scan |
| Refresh Rate | 3,840Hz | |||||
| Panel Material | Aluminum | |||||
| Moudle/Panel Fixed Way | Front & Rear | |||||
| Viewing Angle | 140°/140° | |||||
| Brightness | 6000 – 10000nits | |||||
| Gray Scale | 16bits | |||||
| IP Grade | IP65 | |||||
| Signal Input | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | |||||
| Input Voltage | AC100V – AC240V @ 50Hz/60Hz | |||||
| Maximum Power（W/m²） | 600 | 630 | 580 | 580 | 600 | 600 |
| Average Power（W/m²） | 170 | 180 | 170 | 165 | 170 | 170 |
| Operating Environment | -20℃～50℃ 10％～90％RH | |||||
| Working Time | ≥7×24hrs ≥100000Hours | |||||
